Electrical Management Systems for Commercial Buildings
Bringing Electrical Data, Metering, Alarms and Building Systems Together
An electrical management system gives building owners and operators greater visibility over the condition, demand and performance of their electrical infrastructure. Rather than relying only on electricity invoices, individual meter displays or alarms buried within separate systems, an electrical management system brings relevant electrical information together so it can be monitored, trended, investigated and acted upon.
For commercial buildings, this may include the monitoring of main switchboards, distribution boards, tenant supplies, mechanical plant, generators, solar systems, essential services and other critical electrical loads.
WR8Tech works with electrical metering, building management systems, automation networks and commercial building infrastructure to help clients understand what their electrical systems are doing, where problems may be developing and how existing information can be used more effectively.
What Is an Electrical Management System?
An electrical management system is the combination of meters, protective devices, communications networks, controllers, software, alarms and operational processes used to monitor and manage a building’s electrical infrastructure.
Depending on the building, an electrical management system may collect information such as:
- voltage;
- current;
- electrical demand;
- energy consumption;
- power factor;
- frequency;
- circuit loading;
- switchboard status;
- circuit-breaker alarms;
- generator status;
- mains failure;
- solar generation;
- battery operation;
- power quality;
- communications faults;
- abnormal electrical conditions.
The system may operate through dedicated electrical monitoring software, an energy management platform, a building management system, or a combination of several connected systems.
The technology itself is only one part of the solution. For an electrical management system to be useful, the underlying meters must be correctly installed, the communications must be reliable, the data must be accurately mapped and the information must be presented in a form that building operators can understand.
More Than an Electricity Meter
An electricity meter records consumption. An electrical management system provides context. A main incoming electricity meter may tell a building owner how much electricity has been consumed, but it may not explain:
- which systems created the demand;
- when the demand occurred;
- whether the electrical load was abnormal;
- whether a circuit is approaching capacity;
- whether the generator failed to start;
- whether a meter has stopped communicating;
- whether electrical demand is increasing over time;
- whether a tenant or item of plant is consuming more energy than expected;
- whether poor power factor or power quality is affecting the installation.
An effective electrical management system connects individual measurements with the way the building actually operates.
This allows electrical information to support maintenance, energy management, fault investigation, capital planning, tenant management and day-to-day building operations.
Electrical Management System Versus Energy Management System
The terms electrical management system and energy management system are often used interchangeably, but they do not always describe the same thing. An electrical management system is primarily concerned with the condition, availability and performance of the electrical infrastructure.
An energy management system generally has a broader focus on consumption, efficiency, cost, sustainability and resource management. An energy management system may monitor:
- electricity;
- gas;
- water;
- thermal energy;
- solar generation;
- carbon emissions;
- energy baselines;
- building performance targets;
- energy costs;
- sustainability outcomes.
An electrical management system may form part of a broader energy management system, but it may also provide more detailed information about electrical distribution, switchboards, power quality, faults, equipment status and critical loads.
For commercial buildings, the strongest outcome is often achieved when electrical management and energy management are connected without being confused. Energy performance depends on accurate electrical information. Electrical reliability depends on more than consumption data alone.
Electrical Management System Versus Building Management System
A building management system, or BMS, is commonly used to control and monitor mechanical services such as air conditioning, ventilation, boilers, chillers, pumps and cooling towers.
A BMS may also monitor electrical systems, including meters, generators, switchboards, transfer systems and electrical alarms. However, the presence of electrical points on a BMS does not automatically mean the building has a complete electrical management system.
In many buildings, the BMS may only receive a limited number of electrical signals, such as:
- mains available;
- generator running;
- common fault;
- switchboard trip;
- meter energy reading.
A more comprehensive electrical management system may also include detailed metering, demand profiles, power factor, voltage, current, load comparisons, power quality information, alarm history and circuit-level analysis.
The BMS can still play an important role. It may provide the main operator interface, generate alarms, store trend logs and connect electrical information with mechanical plant operation.
The important question is not simply whether the electrical system is connected to the BMS. The question is whether the correct information is being collected, verified, displayed and used.
What Can an Electrical Management System Monitor?
The exact scope depends on the building, its electrical infrastructure and the information required by the owner or operator.
Main Incoming Electrical Supply
Monitoring the main incoming supply can provide visibility over whole-building demand, maximum demand, energy consumption, voltage, current, power factor and supply conditions.
This information can help identify unusual demand, changes in building operation and potential constraints within the electrical installation.
Main Switchboards and Distribution Boards
Electrical management systems can monitor individual switchboards, submains and distribution circuits.
This may help building operators understand how electrical loads are distributed and whether particular circuits or areas are approaching capacity.
Mechanical Plant
Heating, ventilation and air-conditioning equipment is often one of the largest electrical loads within a commercial building.
Monitoring chillers, pumps, cooling towers, air-handling units, package units and other mechanical plant can help determine whether equipment is operating efficiently and whether demand is consistent with actual building conditions.
Tenant Electrical Consumption
Tenant metering can support cost recovery, consumption reporting, tenancy comparison and investigation of unexpected usage.
However, tenant metering must be correctly documented and verified. A meter that has been incorrectly labelled or connected to the wrong circuit can create long-term billing and management problems.

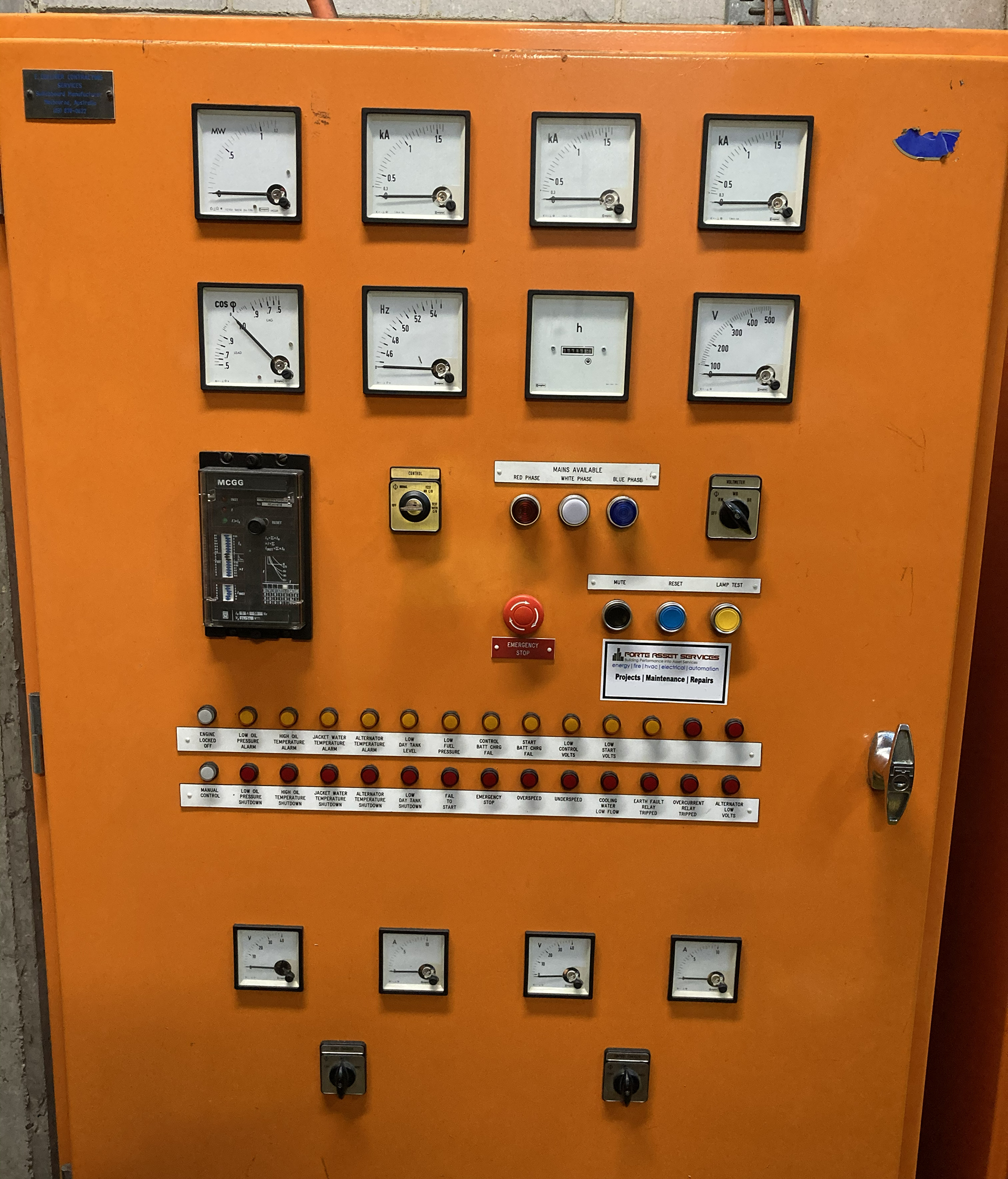

Generators and Automatic Transfer Systems
Electrical management systems may monitor generator availability, run status, faults, fuel levels, battery condition and transfer-switch operation.
For critical buildings, it is not enough to know that the generator exists. The building operator needs meaningful information about whether it is available, whether it has started when required and whether faults have been raised.
Solar and Embedded Generation
Solar generation can be integrated into the broader electrical management system so building operators can compare generation, consumption and export.
Without integration, solar information may remain isolated within a separate manufacturer portal and may not be considered alongside the building’s actual electrical demand.
Critical Electrical Loads
Critical loads may include communications rooms, data rooms, fire systems, security systems, medical equipment, refrigeration, pumps and other services that cannot be allowed to fail without warning.
Monitoring these loads can support early fault detection and more effective operational response.
The Main Components of an Electrical Management System
A commercial building electrical management system may include several layers of equipment and software.
Electrical Meters
Meters provide the underlying data. They may measure energy, demand, voltage, current, power factor, frequency and other electrical characteristics.
Meters may be installed at the main incoming supply, major switchboards, tenant supplies, mechanical plant or individual critical loads.
Current Transformers
Current transformers, commonly known as CTs, allow meters to measure electrical current.
Incorrect CT ratios, reversed polarity or incorrect wiring can produce inaccurate readings even when the meter appears to be operating normally.
Protection Relays and Circuit-Breaker Interfaces
Protective devices may provide information about trips, faults, breaker position, overloads and other abnormal conditions.
The availability of this information depends on the equipment installed and the communications or hardwired interfaces provided.
Communications Networks
Electrical devices may communicate using protocols such as Modbus RTU, Modbus TCP/IP, BACnet MS/TP, BACnet/IP or manufacturer-specific systems.
Gateways may be required where devices and systems use different protocols.
Building Management Systems and Supervisory Platforms
A BMS or dedicated supervisory platform may collect, display, trend and alarm electrical data.
The interface should present the information clearly enough for building operators to recognise abnormal conditions and understand what action may be required.
Dashboards and Reporting
Dashboards can display electrical consumption, demand, system status and historical performance.
However, a visually attractive dashboard is not proof that the underlying information is correct.
The data must first be verified at the meter, communications and software levels.
Electrical Meter Integration
Many modern electrical meters include communications capability but are never fully integrated into the building’s operational systems.
A meter may have been installed during a switchboard upgrade, fit-out or energy project, yet its data may remain visible only on the front display.
Integrating meters into a BMS or electrical management platform can allow the information to be:
viewed remotely;
recorded over time;
compared with other meters;
used for demand analysis;
included in reports;
connected to alarms;
reviewed alongside plant operation.
Successful meter integration requires more than connecting two communication wires.
The process may involve:
confirming the meter model;
reviewing communications settings;
identifying the correct protocol;
checking network addresses;
confirming baud rate and parity;
reviewing the Modbus register map;
checking BACnet objects;
confirming CT and voltage ratios;
applying the correct scaling;
naming points clearly;
testing values against the physical meter;
configuring trends and alarms;
documenting the completed installation.
Without these steps, the building may collect data that is incomplete, misleading or unusable.
Power Quality and Electrical Performance
Electrical management systems can also support the monitoring of power quality.
Power quality problems may contribute to equipment faults, nuisance trips, overheating, reduced equipment life and unexplained operational problems.
Depending on the meters and equipment installed, the system may monitor:
voltage variation;
voltage imbalance;
current imbalance;
frequency;
harmonics;
power factor;
demand peaks;
transient events;
abnormal loading.
Not every building requires advanced power-quality monitoring. However, where there are recurring electrical faults, sensitive equipment, large variable-speed drives, generators, solar systems or unexplained trips, more detailed monitoring may help identify what is actually occurring.
Alarm Management
Electrical alarms should provide meaningful information to someone who can respond.
A system that generates hundreds of nuisance alarms may be almost as ineffective as a system that generates no alarms at all.
Electrical alarms may include:
mains failure;
generator fault;
switchboard trip;
high demand;
low power factor;
communications failure;
meter offline;
abnormal voltage;
loss of critical supply;
battery fault;
transfer-system failure.
Each alarm should be assessed according to its operational importance.
The alarm description should identify the affected equipment or area, and the escalation process should reflect the actual risk to the building.
A common electrical alarm without context may tell an operator that something has gone wrong. A properly designed alarm should help them understand where the fault has occurred and what may be affected.
Electrical Management for Unsupervised Buildings
Electrical management becomes particularly important in buildings that do not have a full-time facility manager, building manager or technician on site.
In an unsupervised building, electrical faults may remain unnoticed until they affect tenants, critical services or business operations.
Remote electrical monitoring can help identify:
- loss of mains power;
- generator failure;
- switchboard faults;
- abnormal demand;
- communications failures;
- loss of critical circuits;
- plant that has failed to restart;
- electrical conditions outside expected limits.
Remote monitoring should not simply create more data. It should provide clear information that allows the right person to assess the problem and determine whether attendance is required.
Electrical monitoring can also be connected with HVAC, fire, security and other building systems to provide a more complete view of what is occurring across the site.
Common Electrical Management System Problems
Commercial buildings frequently contain electrical meters, controllers and communications devices that are not delivering their intended value. Common problems include:
- meters installed but never connected to the BMS;
- incorrect CT ratios;
- reversed current-transformer polarity;
- incorrect scaling;
- meters assigned to the wrong tenancy or circuit;
- incomplete switchboard labelling;
- unreliable Modbus communications;
- duplicated network addresses;
- gateways that have failed or been disconnected;
- missing trend logs;
- alarms that were never configured;
- electrical data that cannot be reconciled with electricity invoices;
- meters that have stopped communicating without generating an alarm;
- dashboards displaying information that has never been verified;
- electrical systems isolated within separate manufacturer portals;
- undocumented changes following switchboard or tenancy works.
These issues are often not obvious from the front end of the system. A value may appear on a graphic and still be wrong.
Proper investigation requires checking the complete pathway from the physical electrical installation through to the displayed value.
Retrofitting an Existing Commercial Building
An electrical management system does not always require the replacement of every existing meter, switchboard or control system.
Many buildings already contain useful equipment that can be retained and integrated. Before recommending wholesale replacement, WR8Tech can assess:
- existing electrical meters;
- switchboard communications;
- current-transformer arrangements;
- available network infrastructure;
- BMS capacity;
- existing gateways;
- metering documentation;
- electrical drawings;
- single line diagrams;
- operational requirements;
- alarm and reporting needs.
Some systems may only require communications repairs, reprogramming, improved graphics, corrected meter scaling or better alarm configuration.
Other installations may require additional meters, network upgrades or replacement of obsolete equipment. The correct approach should be based on what the building already owns, what information is required and what can be practically supported in the long term.
Why Commissioning and Data Verification Matter
Electrical data should not be assumed to be correct simply because it appears on a screen. Commissioning may include:
- comparing displayed values with the meter;
- confirming CT ratios;
- checking phase readings;
- verifying meter location;
- confirming the circuit being measured;
- testing communications failure alarms;
- reviewing demand values;
- validating accumulated energy;
- confirming point scaling;
- testing trend logs;
- reviewing graphics and descriptions;
- confirming that alarms reach the intended recipients.
Where possible, electrical management information should also be compared with other available evidence, including electricity invoices, portable test equipment, switchboard records and known plant operation.
Data verification protects building owners from making decisions based on inaccurate information. It also provides greater confidence that future reporting, energy analysis and fault investigation are based on a reliable foundation.
Electrical Management and Building Operations
An electrical management system should support the way the building is managed. Useful applications may include:
- investigating high electricity consumption;
- managing maximum demand;
- reviewing plant operating hours;
- identifying unexpected after-hours loads;
- supporting tenant consumption reporting;
- assessing electrical capacity before a fit-out;
- monitoring critical equipment;
- investigating nuisance trips;
- reviewing generator performance;
- planning switchboard upgrades;
- supporting energy audits;
- verifying energy-saving projects;
- identifying deteriorating equipment performance;
- improving operational resilience.
The value of the system comes from connecting electrical information with practical building knowledge. Data without interpretation can create noise. Electrical information combined with technical and operational experience can support better decisions.
Planning an Electrical Management System
Before developing or upgrading an electrical management system, building owners should first decide what they need the system to achieve. Important questions include:
- Which electrical supplies and loads are most important?
- What information is already available?
- Who will use the system?
- Which alarms require an immediate response?
- Is tenant billing involved?
- Is maximum demand a concern?
- Are there recurring power-quality or electrical faults?
- Does the building have an existing BMS?
- Can existing meters communicate?
- How long must historical data be retained?
- Who will maintain the system?
- What documentation will be provided?
The answers should guide the design. Installing large numbers of meters without a clear operational purpose can produce an expensive system that is rarely used.
A smaller, well-designed and properly commissioned system may deliver substantially greater value.
How WR8Tech Can Help
WR8Tech provides electrical, automation and building systems experience across commercial buildings. Our electrical management system services may include:
- existing-system audits;
- electrical meter reviews;
- meter integration;
- Modbus and BACnet communications;
- BMS integration;
- gateway configuration;
- electrical monitoring graphics;
- alarm configuration;
- trend logging;
- meter and CT verification;
- fault investigation;
- generator monitoring;
- switchboard monitoring;
- power and demand monitoring;
- system upgrades;
- remote monitoring;
- commissioning;
- documentation;
- ongoing technical support.
Because our experience spans electrical services, mechanical electrical systems, BMS, automation, energy metering and occupied-building operations, we consider both the electrical installation and the way the information will be used.
A Management System Must Do More Than Display Data
A building may contain modern electrical meters, communication networks and sophisticated software while still having very limited understanding of its electrical performance.
The objective is not simply to place more numbers on a dashboard. A properly developed electrical management system should help the building owner or operator understand:
- what is happening;
- where it is happening;
- whether it is normal;
- what has changed;
- what may be at risk;
- what action may be required.
That requires accurate metering, reliable communications, meaningful alarms, verified data and a clear connection between the technology and the operation of the building.
